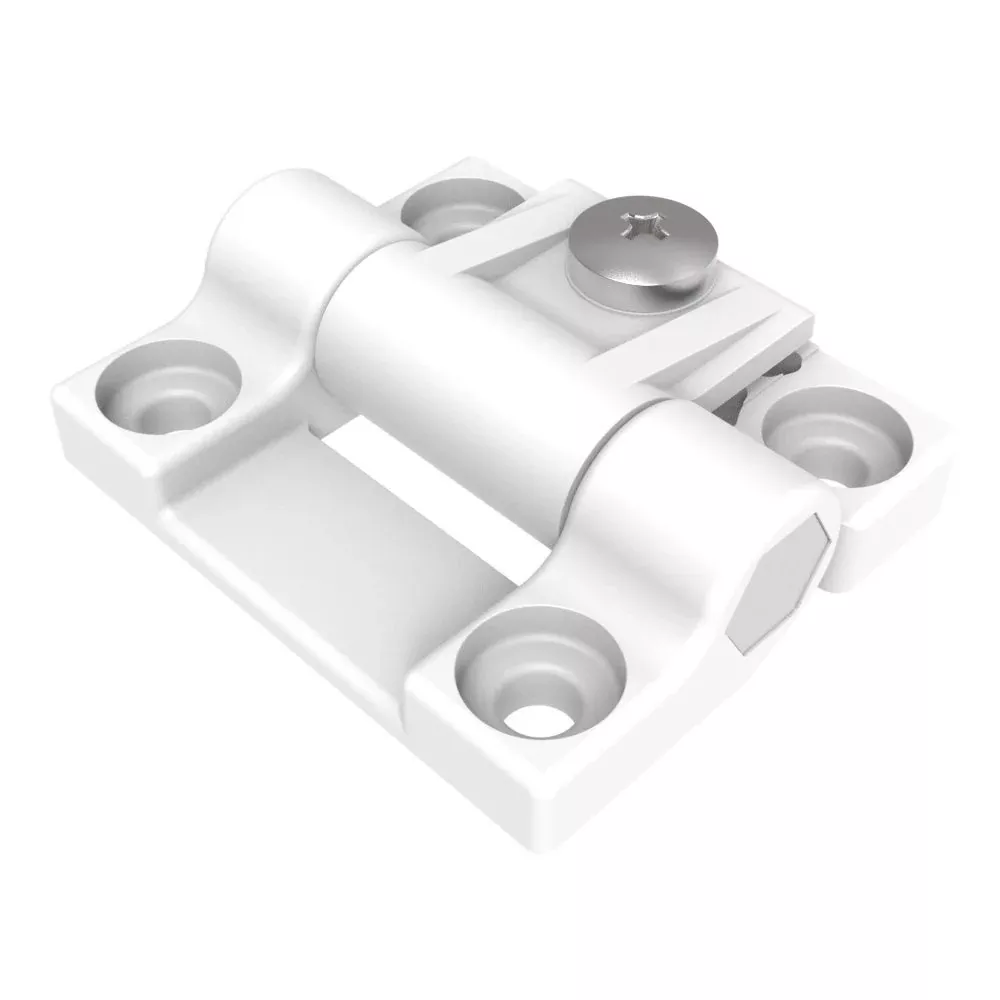

Southco Adjustable Torque Hinge, Symmetric, Medium Size, Acetal Copolymer, Natural, White – E6-10-301-10

Description

Adjustable Torque Hinge, Symmetric, Medium Size, Acetal Copolymer, Natural, White

Allow users the flexibility to define and adjust the operating effort required to move or position panels. E6 hinges provide infinite control over door positioning and accommodate variables in enclosure construction – without added hardware or installation costs. Aesthetic designs and concealed mounting hardware options provide a clean presentation.

Specifications:

• Material – Acetal Copolymer
• Finish – Natural
• Color/Appearance – White
• Forward Torque (Nm) – 0.79
• Reverse Torque (Nm) – 0.79
• Access Restriction – No Restriction
• Torque Type – Symmetric
• Installation – Rivet / Screw
• Series – Adjustable Torque
• Class – E6 – Adjustable Torque Position Control Hinges

Southco Adjustable Torque Hinge, Symmetric, Medium Size, Acetal Copolymer, Natural, White

Adjustable Torque Hinge, Symmetric, Medium Size, Acetal Copolymer, Natural, White

Allow users the flexibility to define and adjust the operating effort required to move or position panels. E6 hinges provide infinite control over door positioning and accommodate variables in enclosure construction – without added hardware or installation costs. Aesthetic designs and concealed mounting hardware options provide a clean presentation.

Specifications:

• Material – Acetal Copolymer
• Finish – Natural
• Color/Appearance – White
• Forward Torque (Nm) – 0.79
• Reverse Torque (Nm) – 0.79
• Access Restriction – No Restriction
• Torque Type – Symmetric
• Installation – Rivet / Screw
• Series – Adjustable Torque
• Class – E6 – Adjustable Torque Position Control Hinges

BRAND: Southco
Manufacturer Part Number: E6-10-301-10
