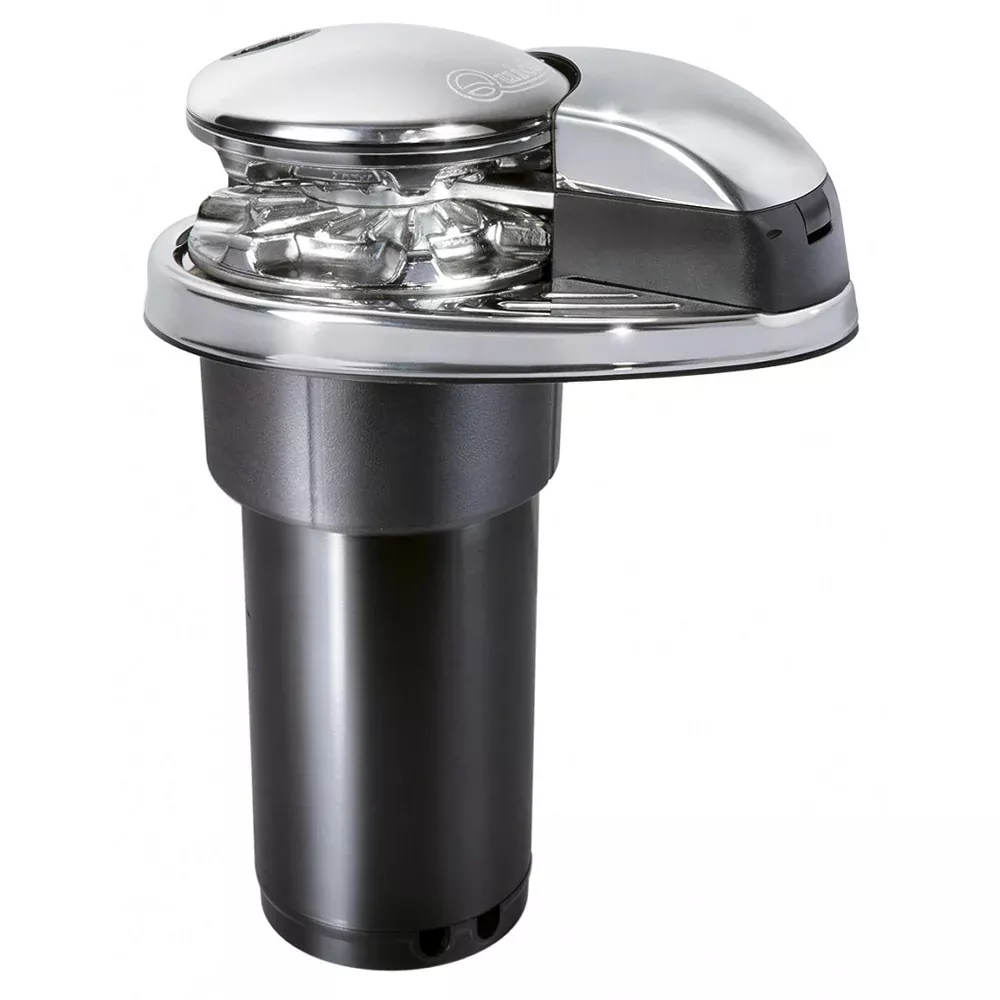

Prince DP2E 1000 Windlass – 800W, 12V 7MM or 1/4″ Chain to 9/16″ Rope
The DP2E is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel, which is a durable element when dealing with harsh marine environments. Features include an IP67 watertight motor, epicyclical gearbox, inspection lid, and easy drop-in installation. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
Vertical windlass
Includes T6415-12 Solenoid
7mm – 1/4″ Gypsy
Boats 23-40 ft
Requires 9/16″ three-stranded polyester rope
Stainless steel AISI 316 base and anodized aluminum in hard oxide.
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Supplied with pressure lever
Inspection lid
Motor watertight to IP66
Anodized aluminum gearbox
Specifications:
Motor power – 800 W
Motor supply voltage – 12 V
Maximum pull – 820 Kg / 1808 lb
Maximum working load – 290 Kg / 639 lb
Working load – 95 Kg / 209 lb
Current absorption @ working load – 84 A
Maximum chain speed – 22,5 m/min / 73.8 ft/min
Maximum chain speed @ working load – 15.2 m/min / 49.9 ft/min
